High Temperature Resistance P84 Filter Media with Tri-Lobal Fiber Structure for Low Back Washing Pressure in Air Filtration

Brand Name : HUAZHE OR OEM

Model Number : P84 Filter media

Certification : ISO9001

Place of Origin : China

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : Within 7-14days or Case by case

Packaging Details : Neutral or private-label packaging, suitable for ocean freight packaging.

MOQ : 1000SQM

Price : CASE BY CASE

Supply Ability : 12000SQM PER 8H

Material : P84

Continuous operating temperature : 240°C (460°F) - 260°C (500°F)

Thickness : 2.0 - 2.3

Air Permeability : 130 - 170

Breaking strength : Warp direction: ≥900-1200, Weft direction: ≥700-1200

Contact Now

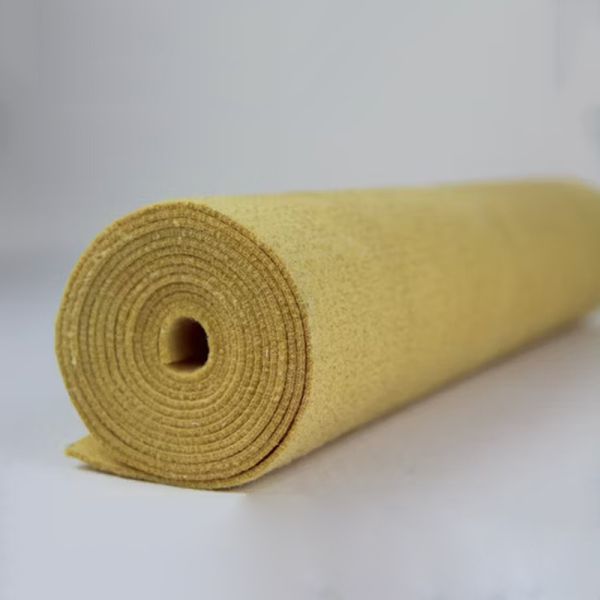

P84 Filter Media
P84 (polyimide) needle felt filter cloth. P84 polyimide needlefelts are excellent high temperature filter media in terms of performance, generally surpassing other standard media with the exception of PTFE.

High Temperature Resistance P84 Filter Media with Tri-Lobal Fiber Structure for Low Back Washing Pressure in Air Filtration



Key Features
  • Excellent stability under high temperature and resistance to acid
  • Can operate continuously at temperatures up to 500°F (260°C) in practical, low acid working conditions
  • High filtration efficiency and tensile strength
  • Complex cross-sectional shapes create 30-90% more collection surface area compared to round or oval fibers
  • Low back washing pressure with maximum flexibility
  • Unique tri-lobal fiber structure provides high efficiency filtration, low pressure drop, and reduced cleaning energy
  • Excellent dust cake release properties
  • Irregular, tri-lobal fibers offer better collection efficiencies and enhanced dust cake release

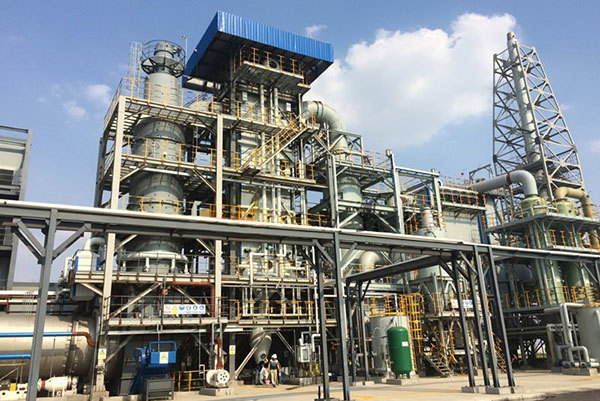

Applications
  • Incinerator plants
  • Cement Kiln gas
  • Low acid coal fired boilers
  • Asphalt/hot mix plants flue gas
  • Minerals processing
  • Soil remediation facilities
High Temperature Resistance P84 Filter Media with Tri-Lobal Fiber Structure for Low Back Washing Pressure in Air Filtration


Specifications
Composition P84/P84 scrim
Weight (g/m²) 450 | 500 | 550
Thickness (mm) 2.1 | 2.3 | 2.5
Air permeability (L/m²/s) 19 | 15 | 12
Tensile strength (N/5*20cm) Warp 650 | 700 | 800
Tensile strength (N/5*20cm) Weft 1150 | 1200 | 1300
Tensile elongation (%) Warp <35 | <35 | <35
Tensile elongation (%) Weft <55 | <55 | <55
Broken strength (Mpa/min) 2.55 | 2.50 | 2.40
Working temperature (°C) ≤ 260
